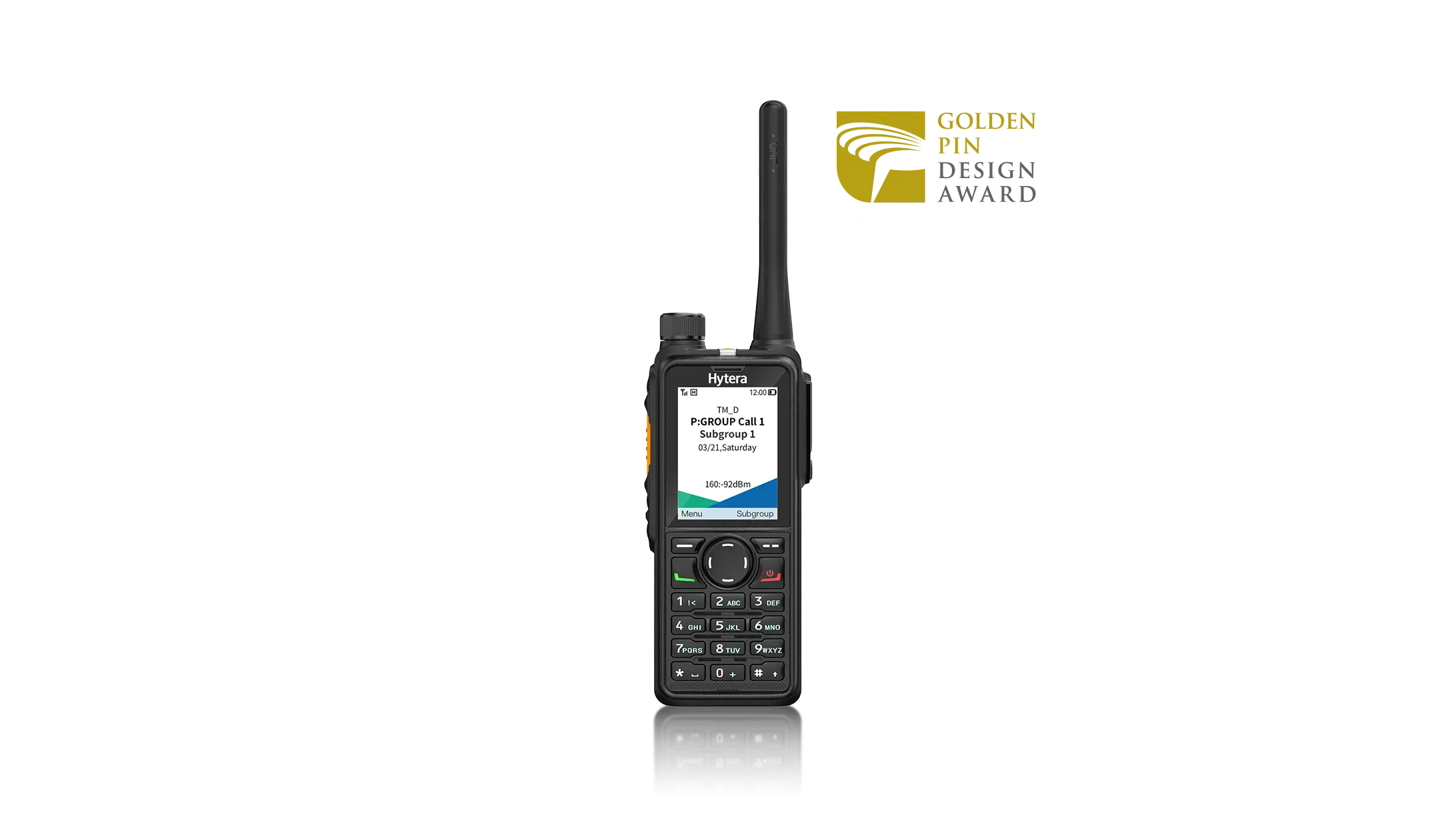

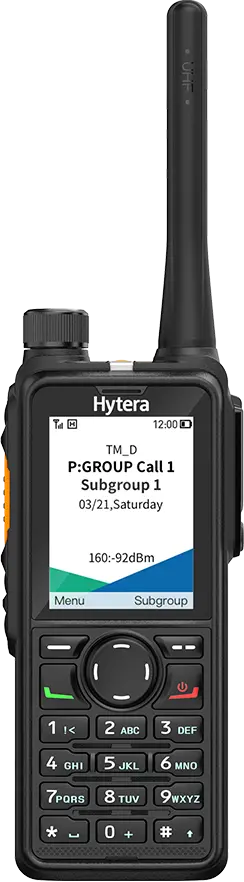

HP78X

Highlights of HP78X

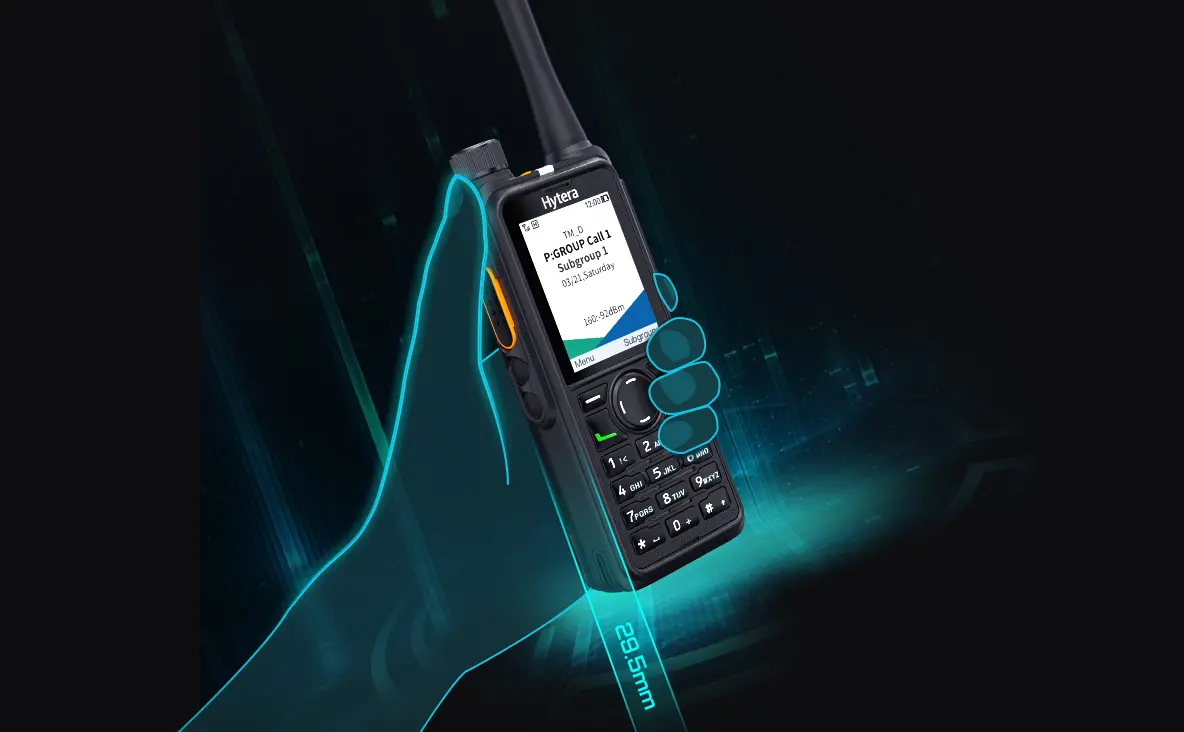

Thinner and Lighter

An optimized mechanical design and a compact lithium polymer battery are discreetly made to fit into the HP78X's design, making the radio only 29.5mm in thickness and 310g in weight, easy to carry.

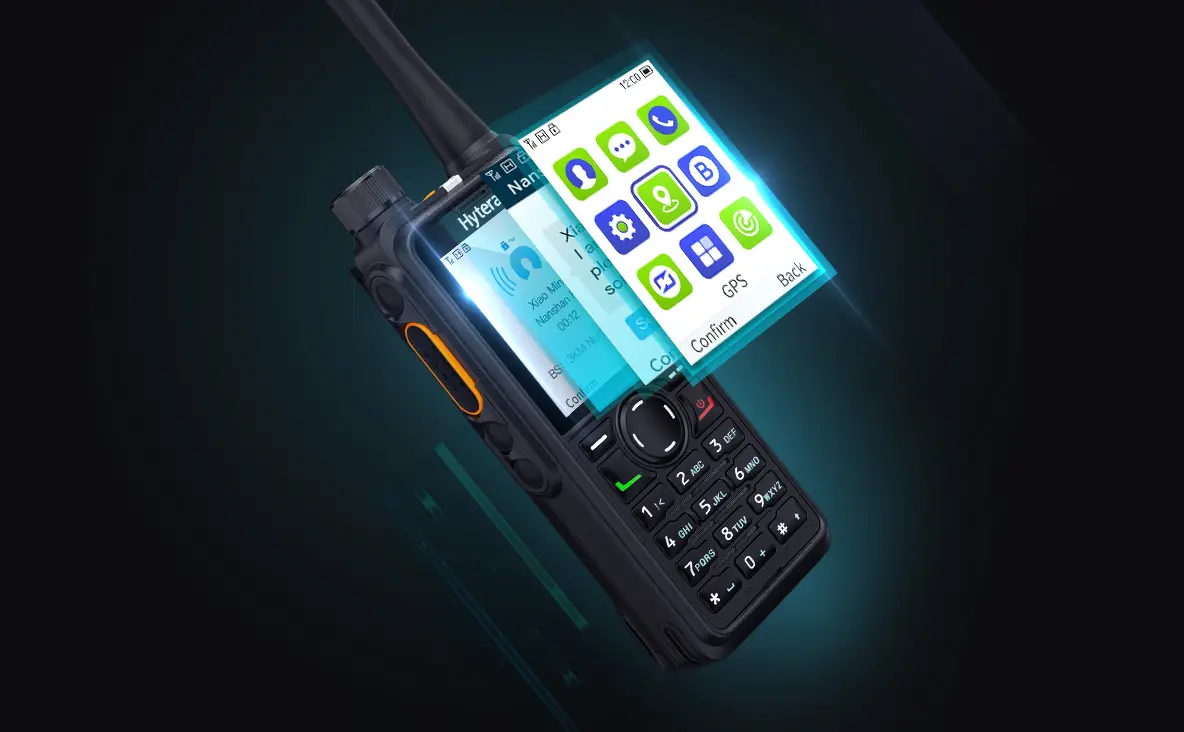

More Intuitive and Efficient

HP78X brings a large screen and a brand new intuitive UI to make the operation more efficient. The 2.4-inch colour screen can display more information (i.e. 6 contacts) per page. Its Quick Access Menu allows users to set the radio faster. Messages are listed in conversation for quick reading and review. The Interface Switcher is added to the option of programmable buttons, allowing quick switch between up to four frequently accessed interfaces.

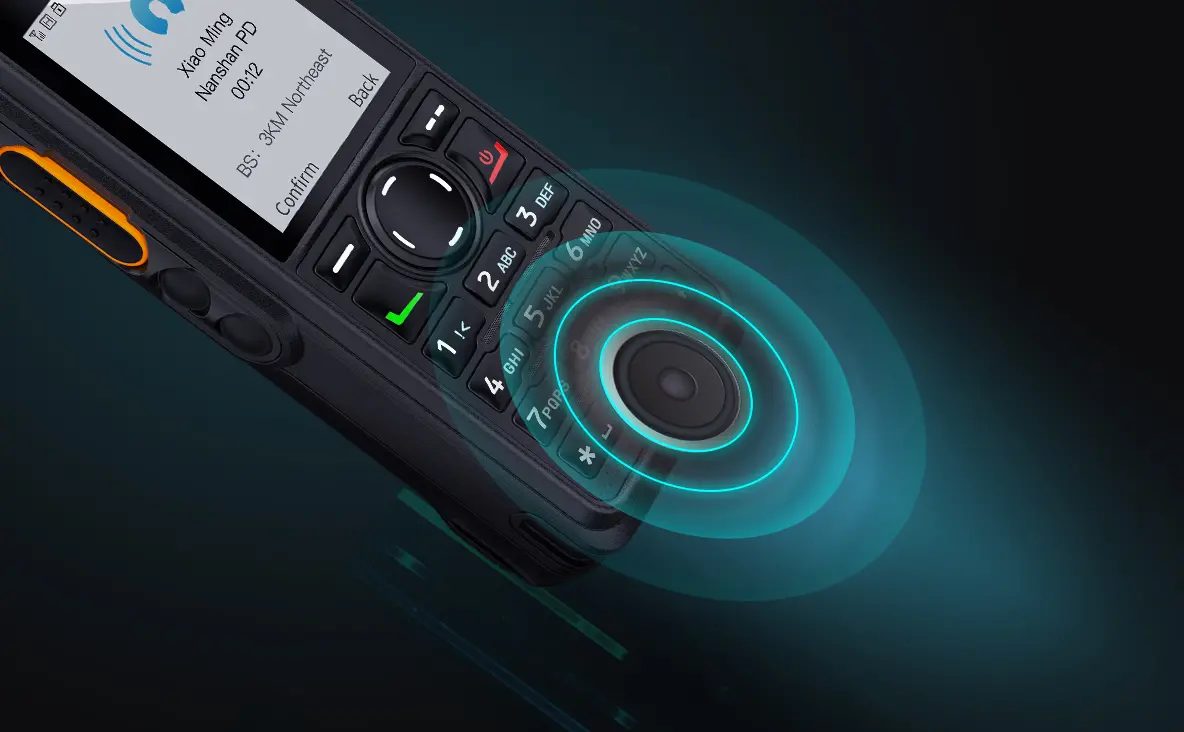

Louder and Clearer Audio

HP78X equips an optimized powerful loudspeaker that can help users to hear clear sounds even in a noisy environment. Water-porting technology is also used to drain out any water that gets into the speaker cavity, ensuring the audio clarity is maintained. AI-based noise cancellation technology can decrease 30dB background noise and howling. No matter what noise environment the calling party is in, it ensures that the called party hears a clear sound.

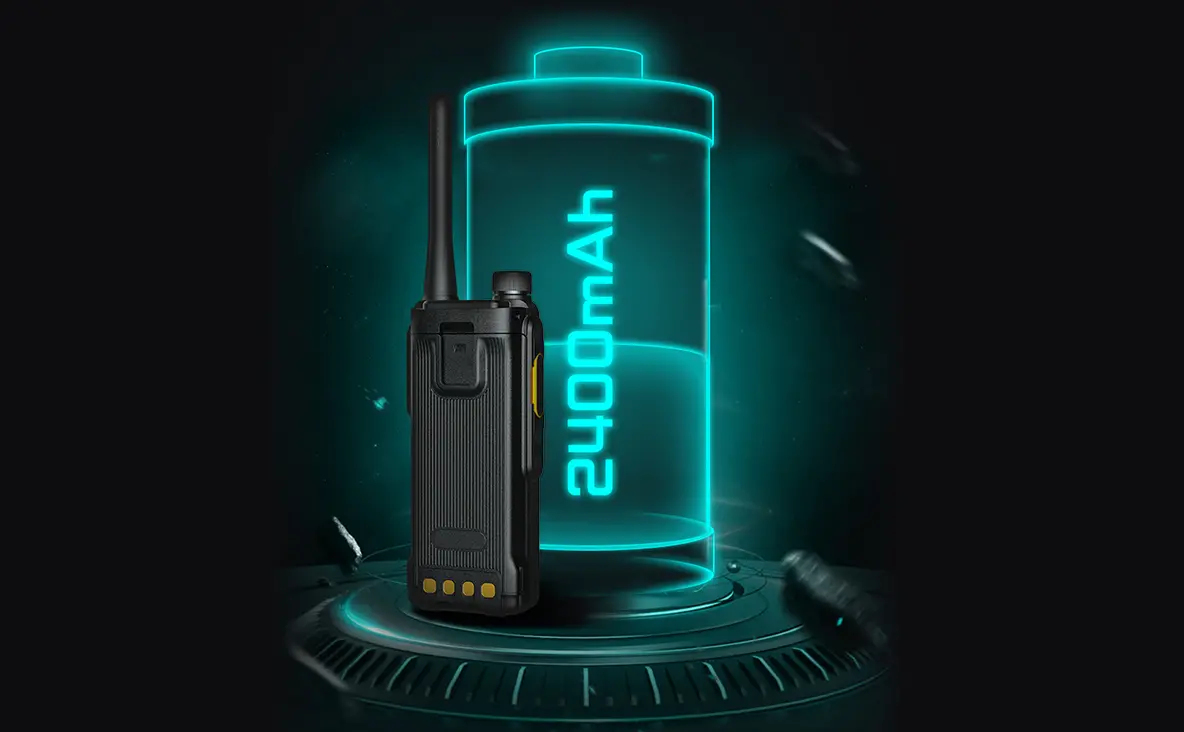

Longer Battery Life

HP78X optimizes product design and technologies to reduce power consumption, meanwhile the latest in proven lithium polymer technology is used in the standard battery which is lighter and smaller than ever before. The new technologies bring a duty cycle of 5/5/90 on achieving a shift life of 24 hours on high transmit power and ensure a full day of delivering key information and calls.

Enhanced Coverage

Extends the operational range and improves the talk range through high receiver sensitivity and high transmit power, stretching communications into areas where it simply was not possible before.

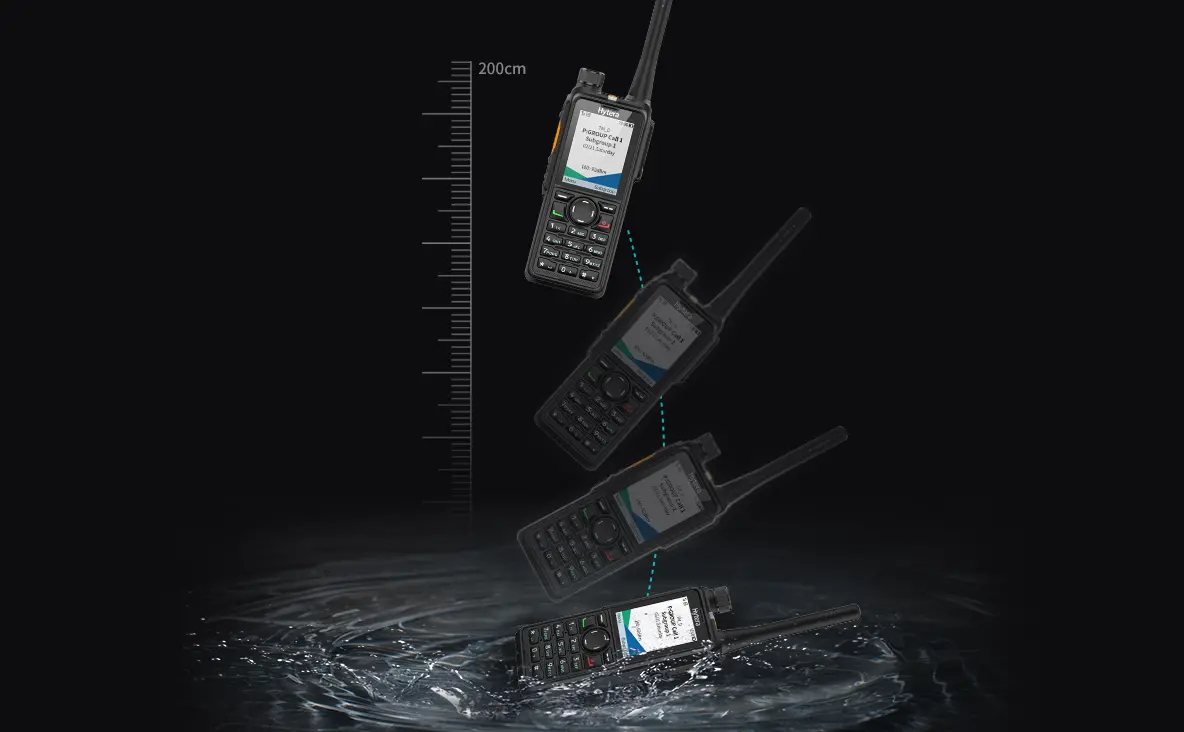

Higher Level of Ruggedness

HP78X is designed as per the MIL-STD-810H. It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete. No matter where the mission drives the officer, the HP78X is the partner to count on, because it can stand up to the toughest environment.

Specifications of HP78X

General

Frequency Range: UHF: 350~470MHz, 806-941MHz; VHF: 136~174MHz
Channel Capacity: 1024
Zone Capacity: 64
Operating Voltage: 7.7 V(rated)

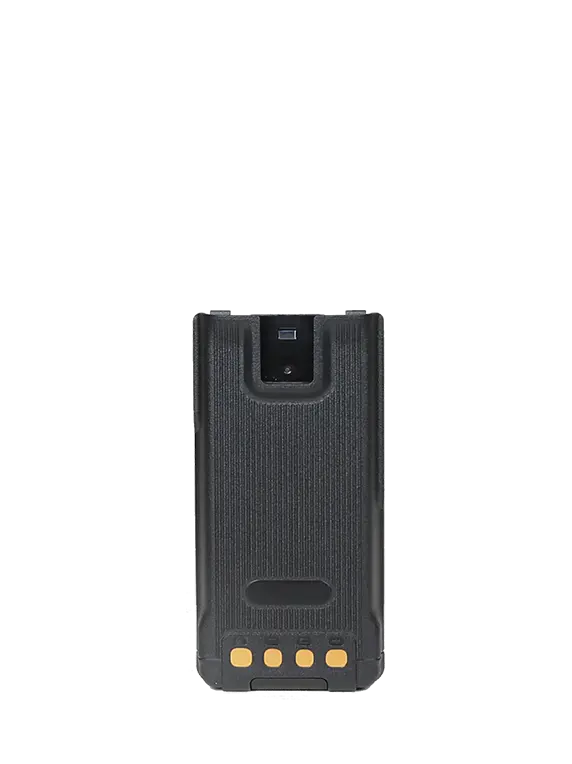

Battery: 2400 mAh Li-polymer
Smart Battery: 3000 mAh Li-polymer(optional)
Battery Life(5/5/90 Duty Cycle,High TX Power): 2000mAh: Without GPS: 24 hours With GPS: 20 hours (digital mode)
3000mAh: Without GPS: 30 hours With GPS: 25 hours (digital mode)
Dimensions(H×W×D) mm: 2400mAh:132 x 55 x 29.5mm
3000mAh:132 x 55 x 37.5mm
Weight: 2400mAh:310g
3000mAh:345g
Display: LCD Display: 240x320 pixel, 262000 colours, 2.4-inch, 10 line
BT: 5.0
