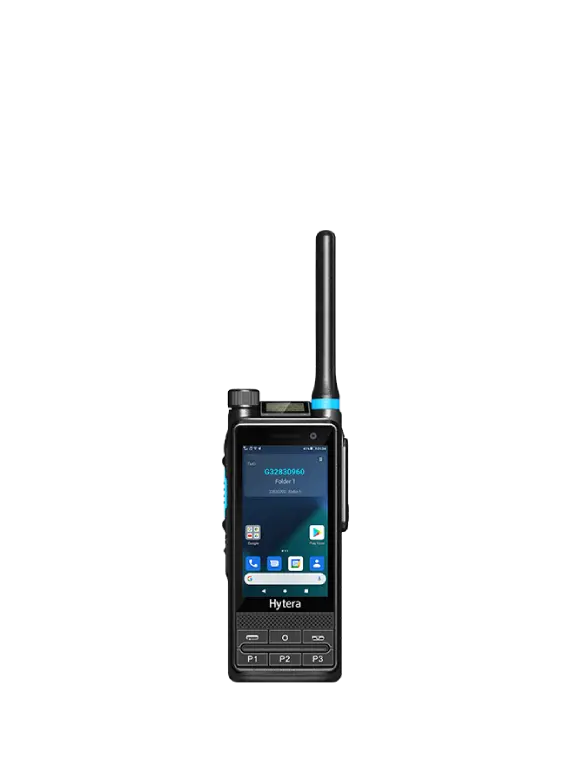

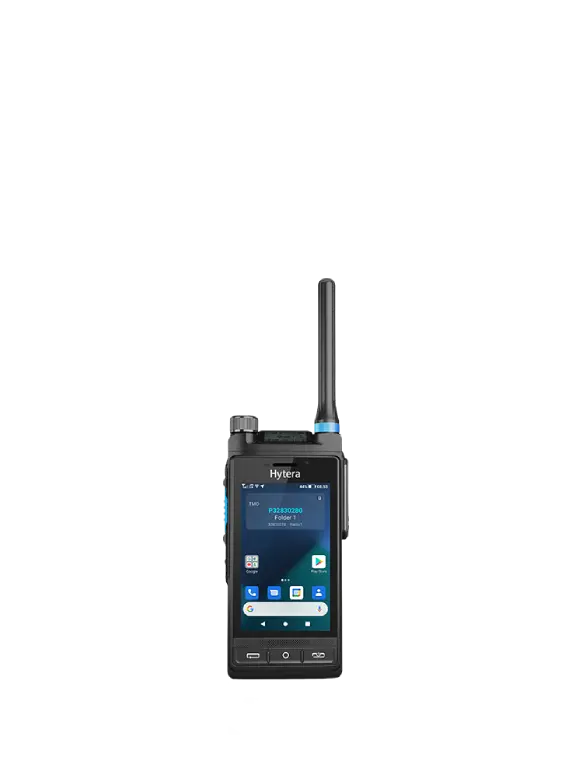

PDC680

Dual-mode Rugged Radio

PDC680 dual-mode rugged radio combines a mission-critical DMR radio with an Android-based smartphone in a single device. It harnesses the power of narrowband and broadband technologies to provide mission-critical voice call, photo and video taking, positioning, etc. This innovative radio enables seamless communications between the DMR network and public networks such as 2G, 3G, LTE, and WLAN.

Get A Quote

Highlights of PDC680

Loud and clear audio

Using the enlarged front chamber technology and professional acoustic design, the PDC680 can output sound up to 128 dB. The PDC680 adopts AI-based noise cancellation, echo cancellation, and wind noise reduction technologies to ensure crystal and clear audio in noisy environments.

Rugged and durable

Rated at IP68 and ESD IEC Level 4, the PDC680 withstands water, dust, and electrostatic discharge. It can also withstand a 1.5-meter drop from all angles. The industrial-grade touchscreen stands up to continuous use in any weather.

All-in-one device

The PDC680 combines a DMR radio and a smartphone into a single device with a highly integrated and modular design. So you do not need to carry two separate handsets for accessing voice, data, video, and more.

AD TETRA

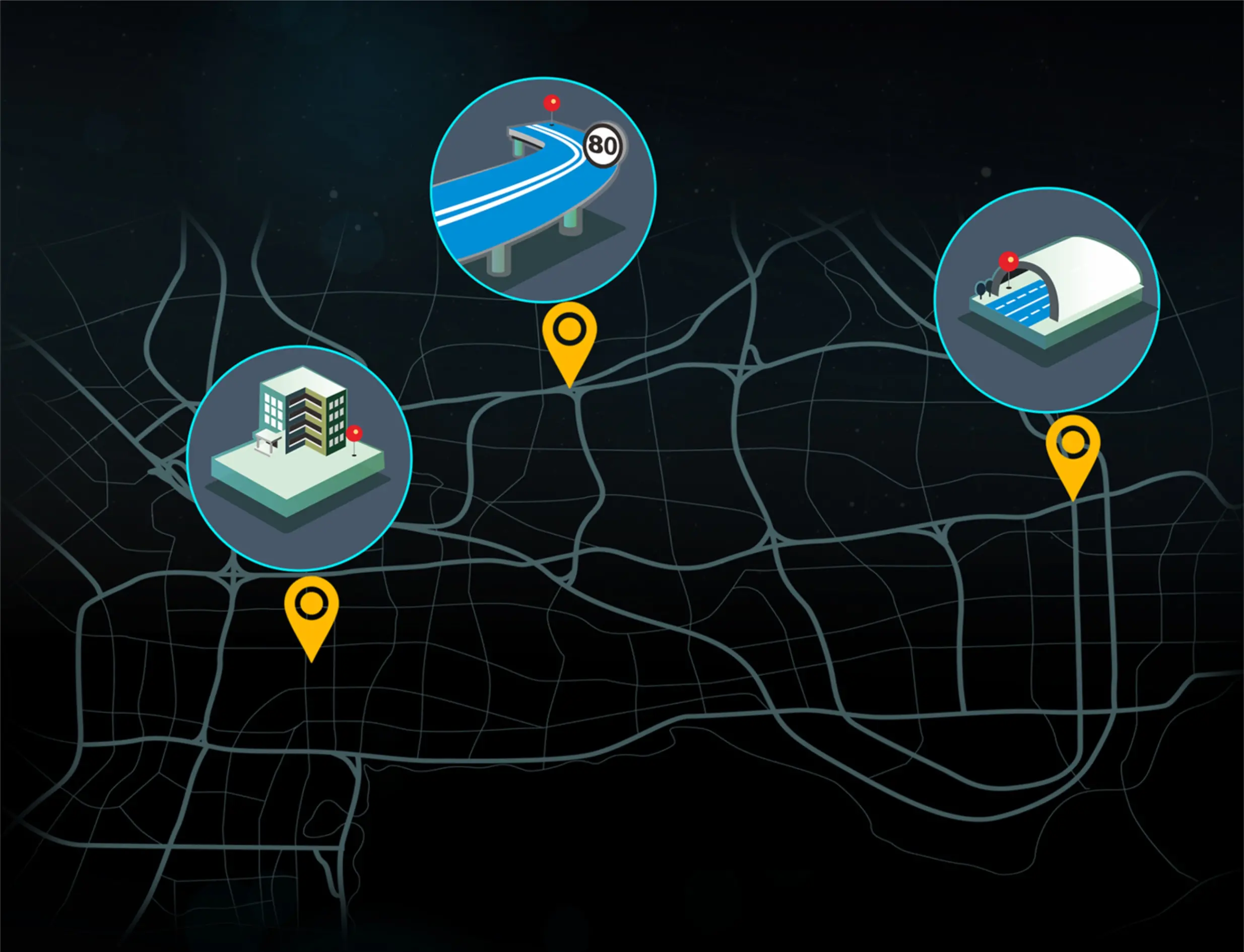

Precise Positioning

The PDC680 provides fast and accurate positioning to track people or devices, indoor and outdoor. The GPS, Galileo, GLONASS, QZSS, BDS, and A-GPS are used for outdoor positioning, while the location-based service (LBS) and WLAN are adopted for indoor positioning.

Automatic Switch

The PDC680 can automatically switch between the DMR network and the LTE network. Registering with both networks using the same ID, the PDC680 can always select the optimal one to deliver smooth and reliable voice communications everywhere, indoors or out.

XPT System
AD TETRA

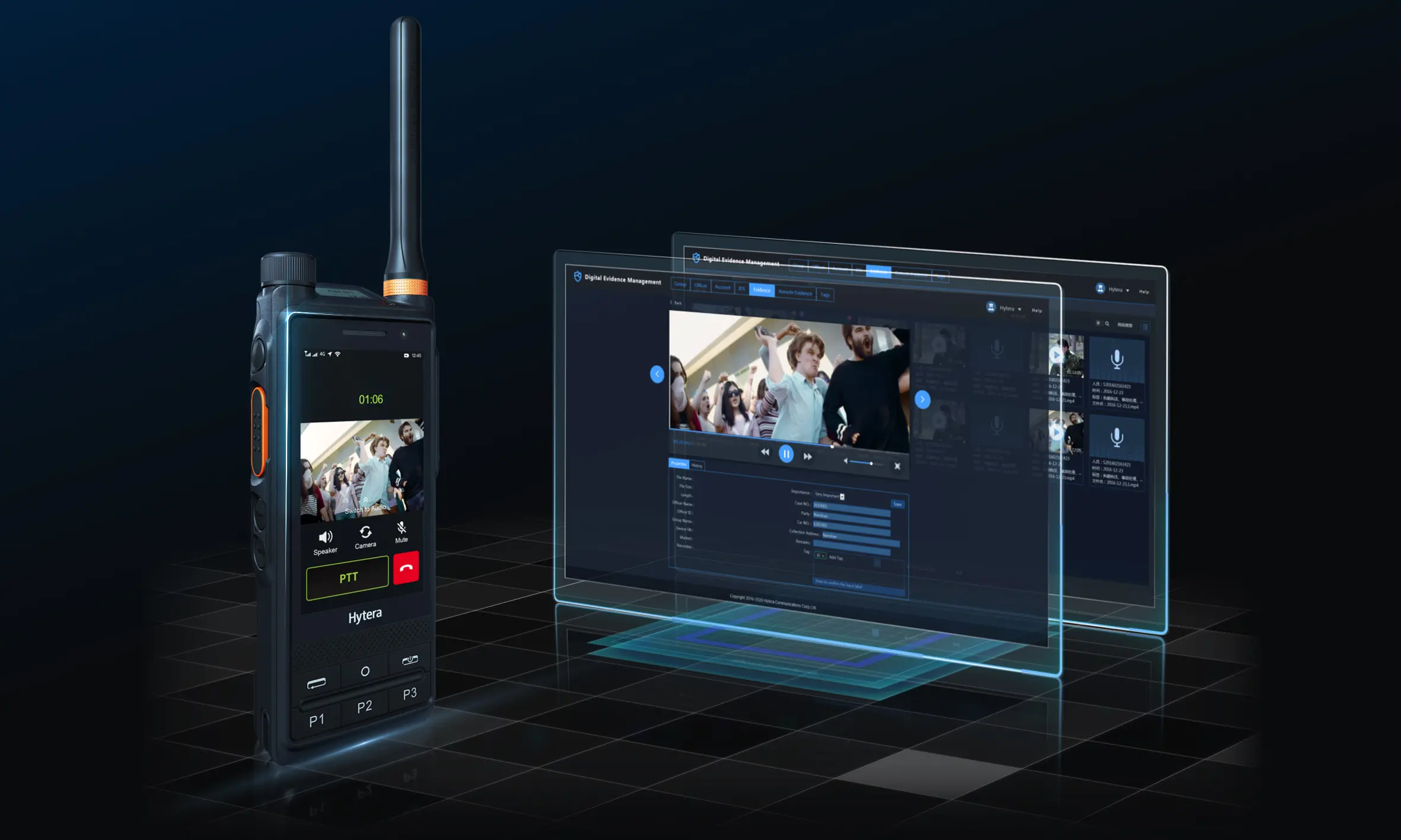

Live Streaming

Thanks to the dual HD cameras, the PDC680 allows you to capture on-site pictures and videos and then send them to another radio or command center in real-time to improve situational awareness dramatically. The PDC680 also supports the external camera.

Purpose-built App

With the Android system, the PDC680 can support system-level apps developed by Hytera and other third-party apps. This helps you communicate and respond efficiently.

XPT System
AD TETRA

Smart Management

You can remotely manage radios in batches, including upgrade, programming, permission control, key configuration, app management, device health management, and data backup and recovery.

Tough Main Screen

Industrial-grade display; Visible in strong lights; Gorilla glass, Scratch and oil proof; Anti impact and figerprint

PoC Radio Phone

Programmable Keys

Shortcut keys for frequently-used operations

Specifications of PDC680

Wireless Data Communication

Narrow Band
UHF:340~470 MHz;VHF:136-174MHz
LET
3GPP LTE; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28;
TDD-LTE: B38/B39/B40/B41
CDMA
CDMA 1xRTT BC0; CDMA2000 1xEV-DO BC0
WCDMA
B1/B2/B4/B5/B8
GSM
850/900/1800/1900 MHz
WLAN
802.11 a/b/g/n/ac,2.4 GHz/5 GHz
NFC
13.56 MHz
Positioning
GPS/BDS/GLONASS/Galileo/QZSS/A-GPS

Standard Accessories of HP78X

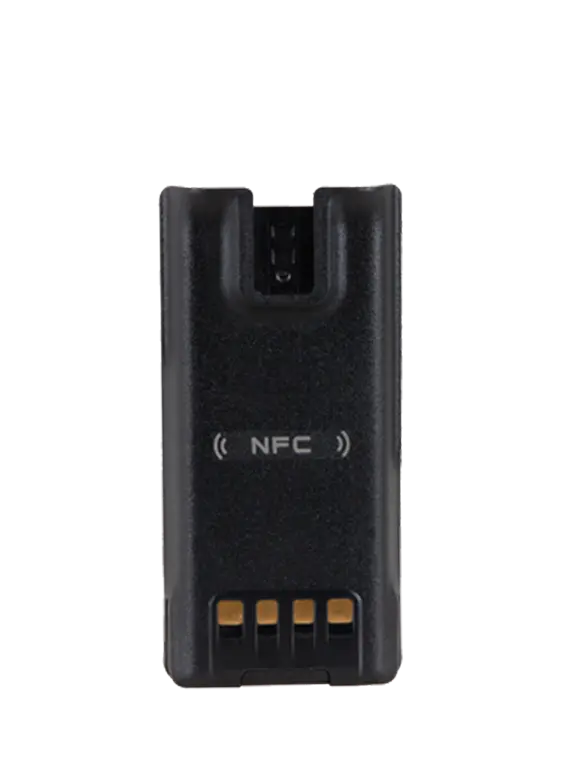

BP2403

BP2402

Smart Li-Poly Battery(2400mAh)

CH10L30

CH20L13

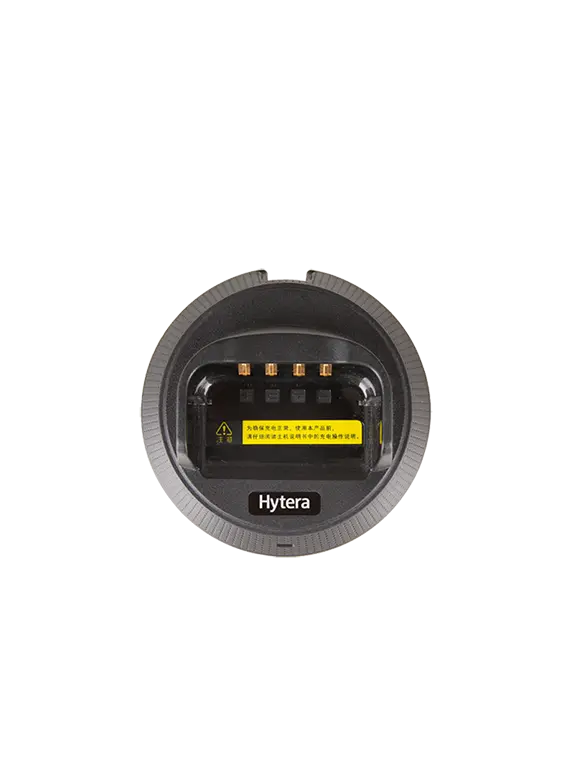

Desktop Charger

Power Adapters

POA195

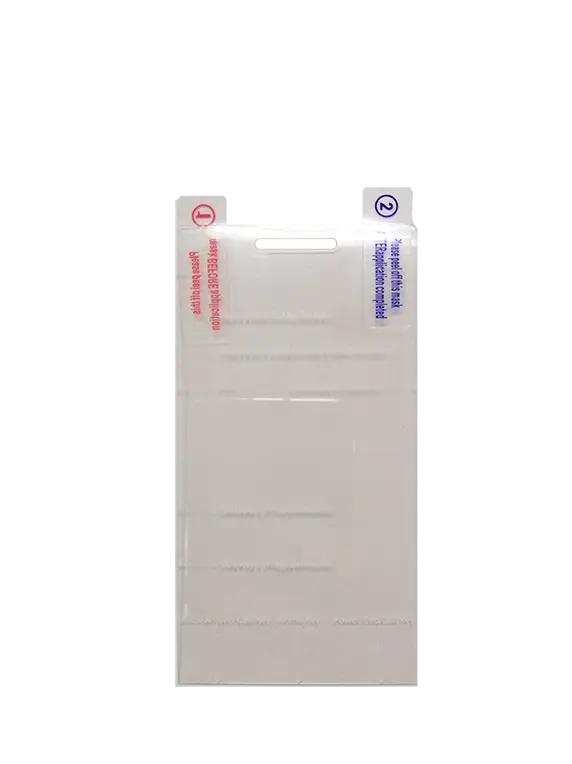

Main Screen Protector

BC39

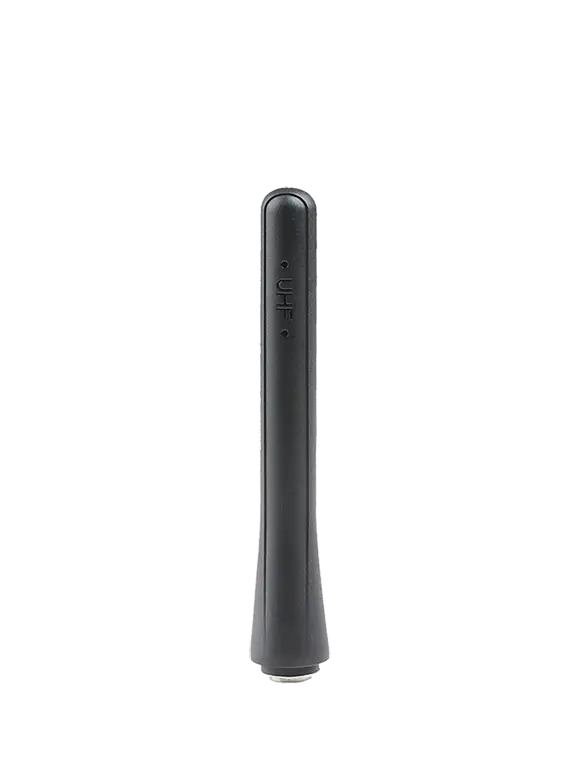

AN0435H24

UHF (400-470MHz/1575MHz) 9cm

RO03

AN0405H18

UHF (380-430MHz/1575MHz) 9cm

Optional Accessories of HP78X

MCL32 Chargers

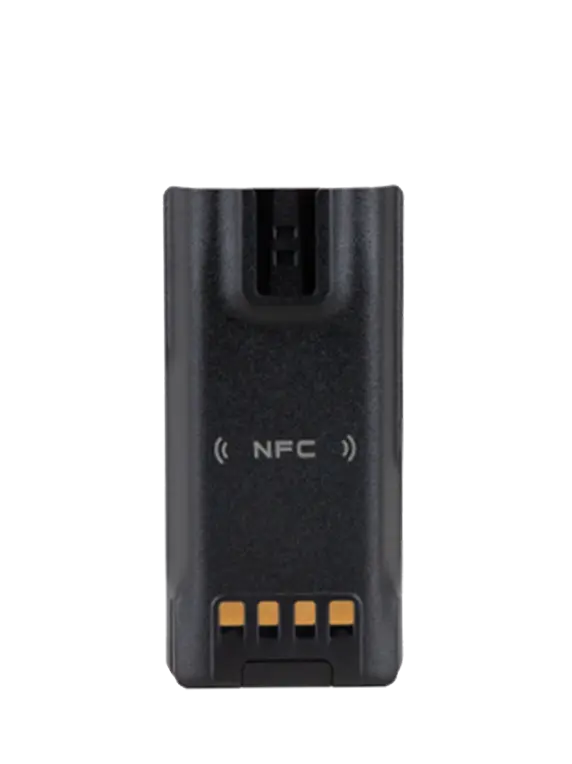

BP4005

Smart Li-ion Battery(4000mAh)

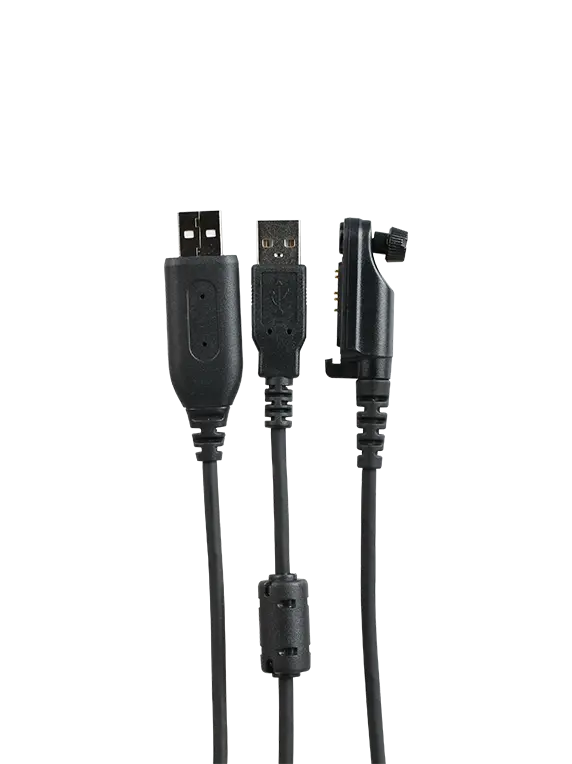

PC152 Cables

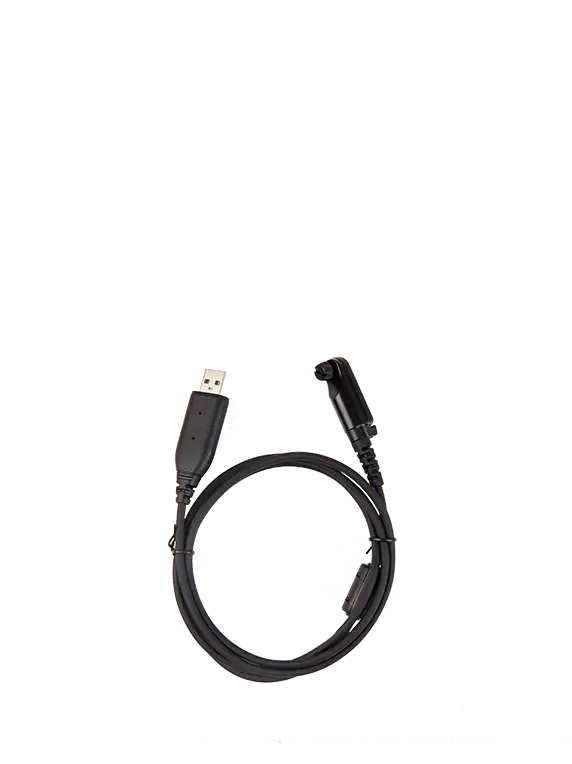

PC152

Programming Cable

ACN-02 Audio

PC156

Data Cable (13-Pin USB & UART)

EAN21 Audio

AN0148H07

VHF(144-154MHz/1575MHz)9cm

EAN21 Audio

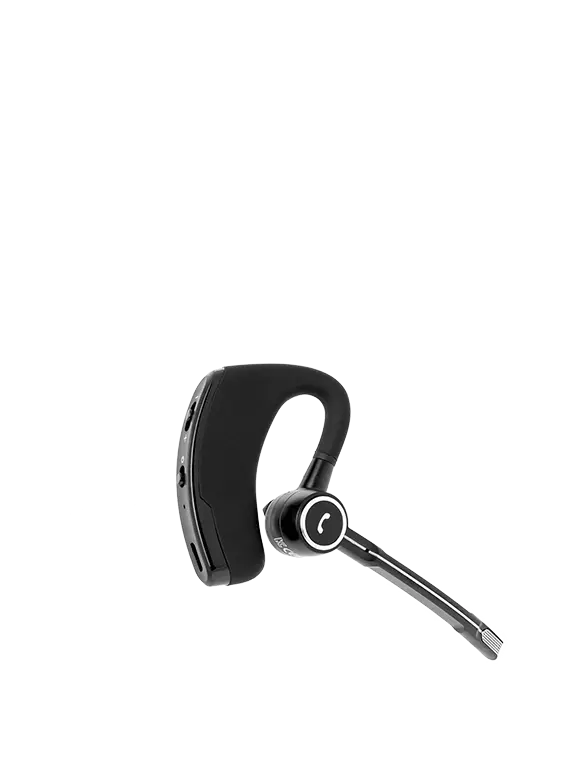

EHW08

Wireless Earpiece

Related Systems of HP78X

BP2403

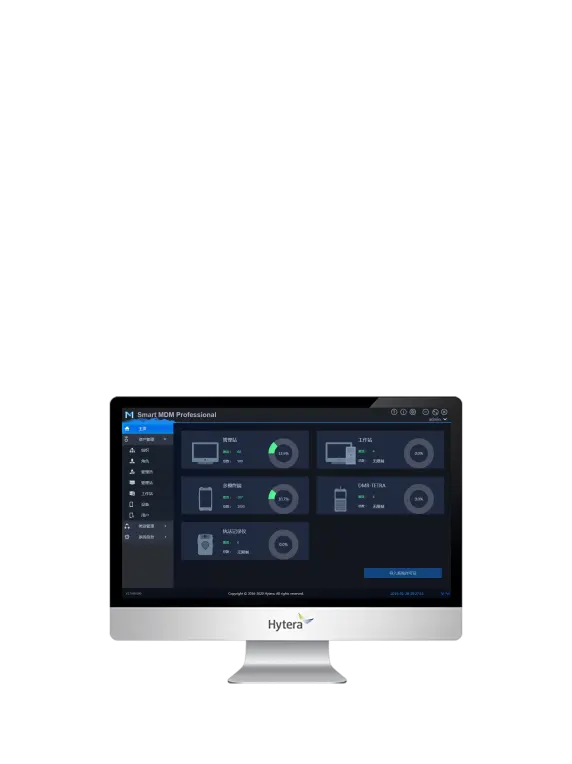

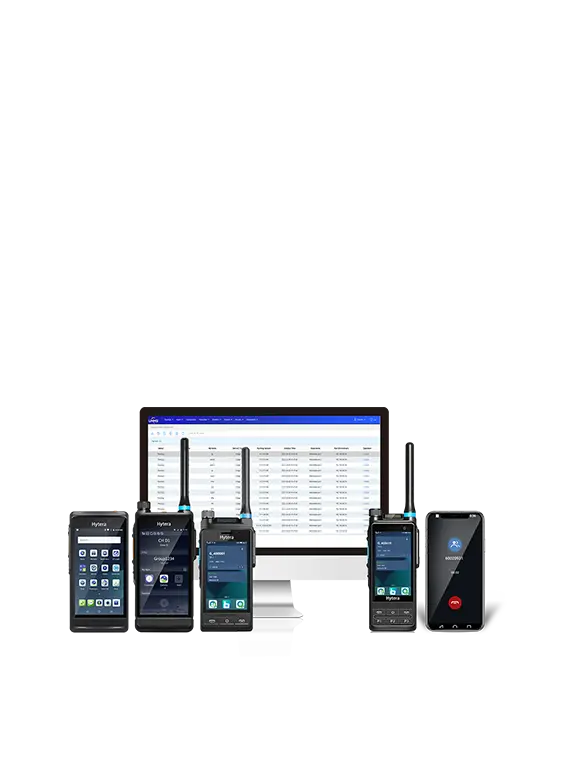

Smart MDM

Smart Mobile Device Management

CH10L30

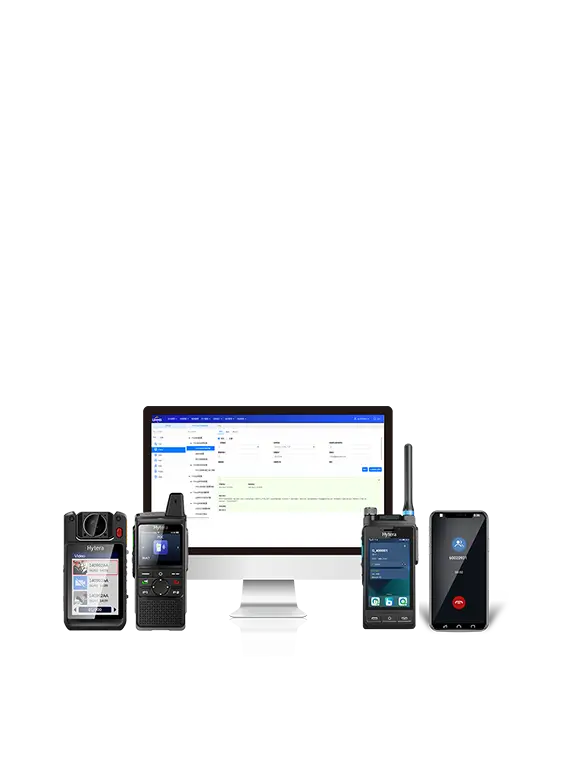

Hytera HyTalk Pro

PMR-LTE Convergence-native System

Power Adapters

Hytera HyTalk MC

MCX System
